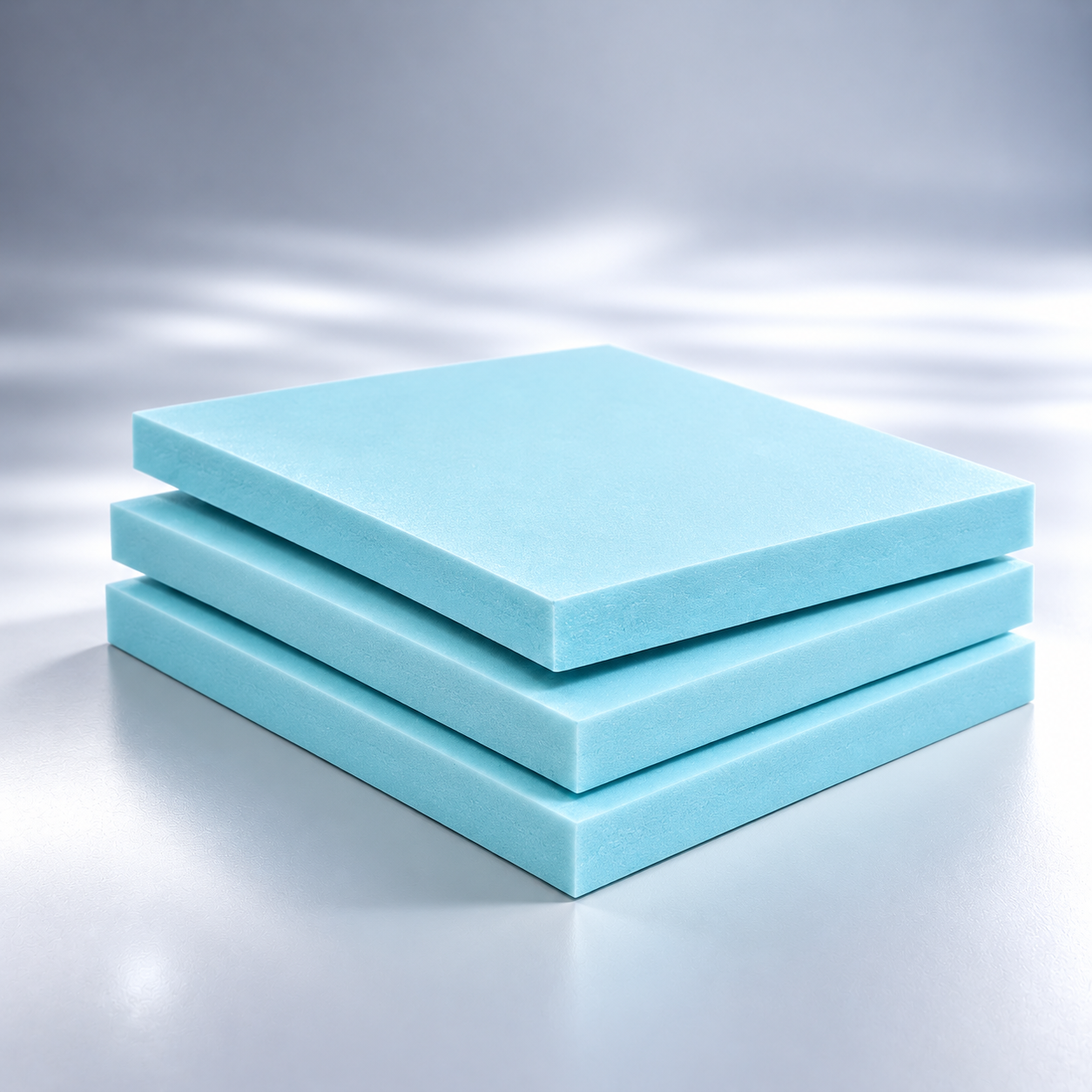

Extruded Polystyrene (XPS)
Extruded Polystyrene (XPS) is a rigid, closed-cell foam insulation board manufactured through a continuous extrusion process using polystyrene resin combined with a blowing agent. Unlike EPS, which is formed from fused, expanded beads, XPS features a uniform, closed-cell structure without bead boundaries — giving it greater compressive strength, lower thermal conductivity, and significantly lower water absorption compared to EPS.
Because of these properties, XPS is typically the preferred option for demanding applications such as inverted or protected roofing systems, podium decks, basement walls, cold storage flooring, and other load-bearing or moisture-prone insulation scenarios, where EPS/Thermocol serves as a more budget-friendly but less durable alternative.
Applications
Specification (typical, generic XPS board) Parameter Specification
| Parameter | Specification |
|---|---|
| Material | Extruded Polystyrene (closed-cell rigid foam) |
| Density | approx. 28–34 kg/m³ (up to ~43 kg/m³ for higher grades) |
| Thermal conductivity (λ) | approx. 0.028–0.038 W/m·K |
| Compressive strength | approx. 150–250 KPa (grade-dependent) |
| Water absorption | < 1% (very low, closed-cell structure) |
| Thermal conductivity (λ) | approx. 0.028–0.038 W/m·K |
| Maximum service temperature | approx. 75°C |
| Standard sizes | Typically 4x6 ft & 6x6 ft boards; thickness 25–75 mm (custom sizes available) |
| Colour | Blue, pink, or green (brand-dependent); also available uncoloured |
Characteristics
Closed-cell, homogeneous structure (no bead boundaries)
Very low thermal conductivity for excellent energy conservation
High compressive strength — suitable for heavy-duty, load-bearing applications
Excellent moisture resistance — water absorption below ~1%, maintains performance in humid/wet conditions
Lightweight, easy to cut, handle, and install
Good dimensional stability and long service life
